Unit Handling Conveyor – Smooth, Efficient, and Reliable Material Flow

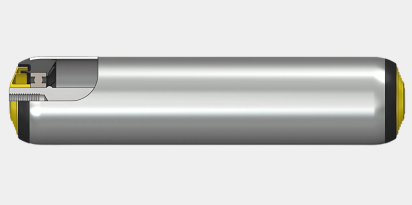

Platform 100
Bearing Housing : Polyamide
Seal : Polyamide / Polypropylene
Bearing : Precision Ball Bearing

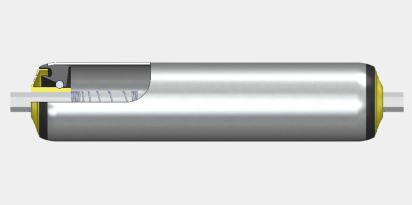

Platform 110
Bearing Housing : Polypropylene
Seal : Polypropylene
Bearing : Semi-Precision Bearing

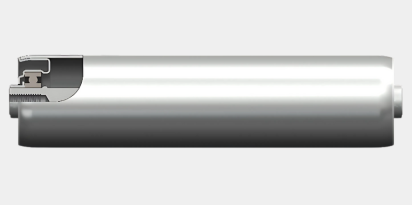

Platform 300
Bearing Housing : Steel Zinc Plated
Seal : Steel Zinc Plated / Polyamide
Bearing : Precision Ball Bearing

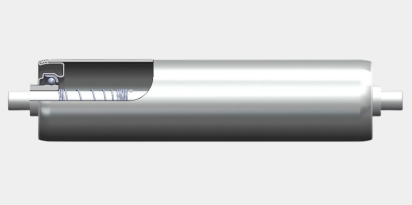

Platform 310
Bearing Housing : Steel Zinc Plated
Bearing : Semi-Precision Bearing
Technical Specification
| Platform | Series | Roller Type | Roller Diameter (mm) |
|---|---|---|---|
| 100 | GN010 | Universal Gravity Conveyor Roller | 38 | 50 | 51 | 60 | 76 | 89 |
| 110 | GN011 | Free Gravity Conveyor Roller | 32 | 38 | 50 |
| 300 | GN030 | Steel Gravity Conveyor Roller | 38 | 50 | 51 | 60 | 76 |
| 310 | GN031 | Steel Free Gravity Conveyor Roller | 38 | 50 | 60 |
| Platform | Series | Drive Type | Roller Diameter (mm) |
|---|---|---|---|
| 100 | ON110 / ON210 | O-Belt Drive Roller | 50 | 51 | 60 |
| 100 | RP010 | Round Belt Drive Head Roller | 50 |
| 100 | VP010 | Poly-Vee Drive Head Roller | 50 |
| 100 | CS110 / CS210 | Welded Steel Sprocket Head Roller | 38 | 50 | 51 | 60 | 76 | 89 |
| 300 | CS130 / CS230 | Welded Steel Sprocket Head Roller | 50 | 51 | 60 | 76 |
| Platform | Series | Drive Type | Roller Diameter (mm) |
|---|---|---|---|
| 100 | GN010TS | Tapered Gravity Conveyor Roller | 50 |
| 100 | ON210TS | Tapered O-Belt Drive Roller | 50 |
| 100 | RP010TS | Tapered Round Belt Drive Head Roller | 50 |
| 100 | VP010TS | Tapered Poly-Vee Drive Head Roller | 50 |
| 100 | CS210TS | Tapered Welded Steel Sprocket Head Roller | 50 |
Frequently Asked Questions :
What does a Unit Handling Conveyor do?
In warehouses, factories, and logistics systems, a Unit Handling Conveyor is used to move single items like boxes, cartons, and packages quickly. It makes sure that the flow of materials is smooth, controlled, and dependable.
How do the Platform 100, 110, and 300 conveyors differ from each other?
Platform 100 has a polyamide bearing housing with precision ball bearings, Platform 110 has a polypropylene housing with semi-precision bearings, and Platform 300 has a steel zinc-plated housing that is very durable and precise for heavy-duty use.
What is the best Unit Handling Conveyor for heavy-duty work?
The Platform 300 Unit Handling Conveyor is great for heavy-duty industrial use because it is made of steel and zinc and has precision ball bearings, which make it stronger and last longer.
What kinds of materials are used to make Unit Handling Conveyor rollers?
Unit Handling Conveyor rollers are made from polyamide, polypropylene, and steel zinc-plated parts, which make them strong, resistant to rust, and able to last a long time.
What are the benefits of using Unit Handling Conveyor systems?
Unit Handling Conveyor systems are important for modern industrial operations because they make material flow smoothly, cut down on manual handling, boost efficiency, require little maintenance, and boost productivity.
