Fixed Drive Conveyor Rollers– Smooth, Efficient, and Reliable Material Flow

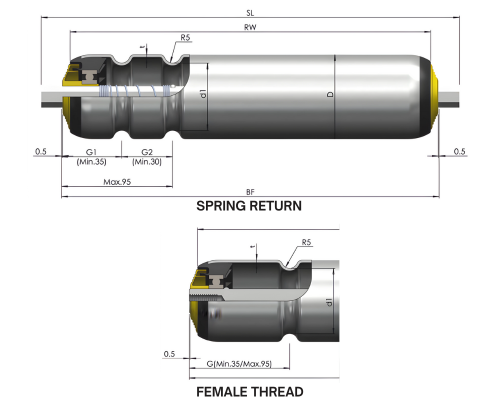

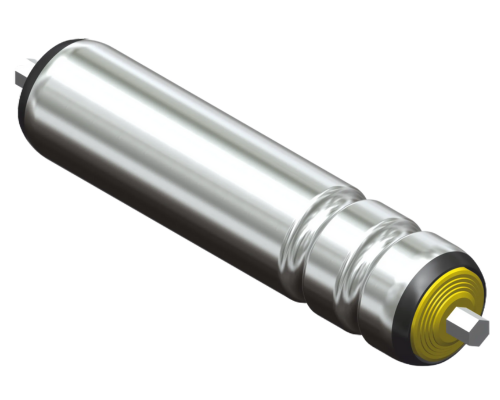

Features
Precision bearings sealed in polymer bearing housing
Low noise, high speed
Choice of number of grooves available
Groove radius R5 mm
Cost efficientGroove location can be customized
AIROLL make Endless 'O' Belts available on demand
| Tube Dia x Thk | Shaft Dia | Steel Z/P | SS |
|---|---|---|---|
| 50.0 × 1.5 | 12 / 15 / 11 Hex | o | o |
| 50.8 × 1.5 | 12 / 15 | o | |
| 60.3 × 2.0 | 12 / 15 / 11 Hex | o |

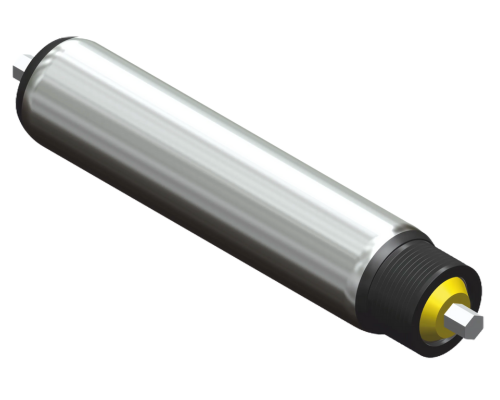

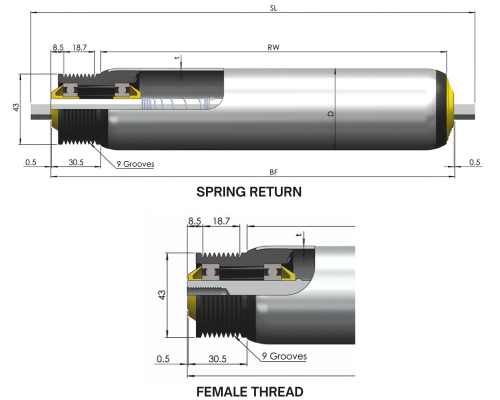

Features
Precision bearings sealed in polymer bearing housing
PJ Series Poly-Vee - 9 grooves at 2.34mm pitch
Design for quiet operation
High speed application for light, medium duty loads
| Tube Dia (mm) | Shaft Dia (mm) | Steel Z/P | SS |
|---|---|---|---|
| 50.0 × 1.5 | 12 / 15 / 11 Hex | o | o |

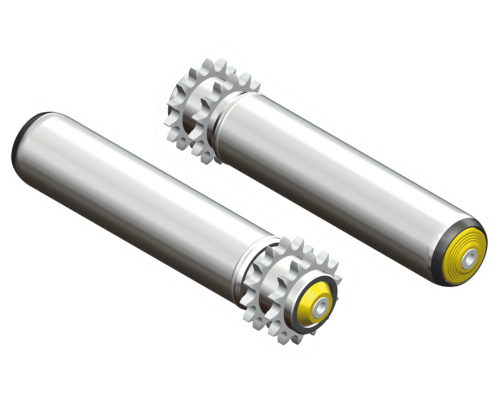

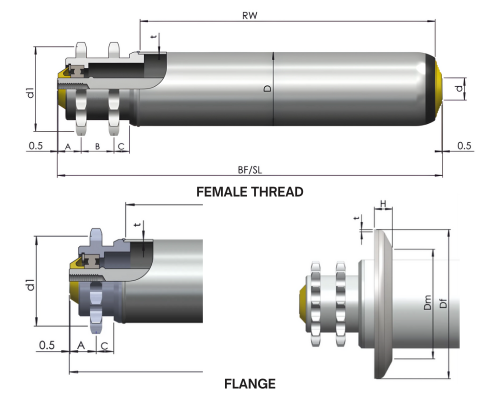

Features
Welded Steel Sprockets
Single or Double sprocket options available
Precision bearings sealed in polyamide bearing housing
Smooth and quite running
Bears light, medium, heavy loads
| Tube Dia x Thk | Shaft Dia | Sprocket | Steel Z/P | SS |
|---|---|---|---|---|
| 38.1 x 1.2 | 12 | 3/8” 15T | ○ | ○ |
| 50.0 x 1.5 | 12 / 15 | 1/2” 14T | ○ | ○ |
| 50.8 x 1.5 | 15 | 1/2” 14T | ○ | ○ |
| 60.3 x 2.0 | 15 | 1/2” 14T | ○ | ○ |
| 60.3 x 3.0 | 17 | 1/2” 14T | ○ | ○ |
| 60.3 x 3.0 | 17 | 5/8” 13T | ○ | ○ |
| 76.2 x 3.0 | 20 | 5/8” 15T | ○ | ○ |
| 88.9 x 3.0 | 20 / 25 | 5/8” 15T | ○ | ○ |
| 88.9 x 3.0 | 20 / 25 | 5/8” 18T | ○ | ○ |

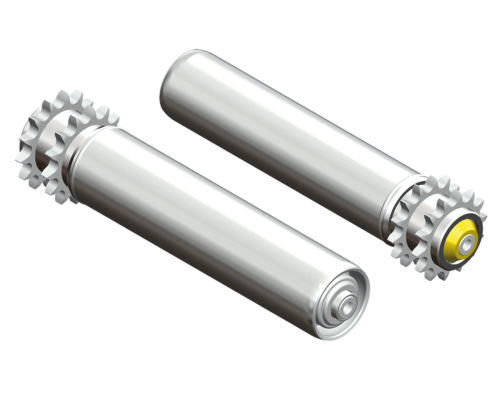

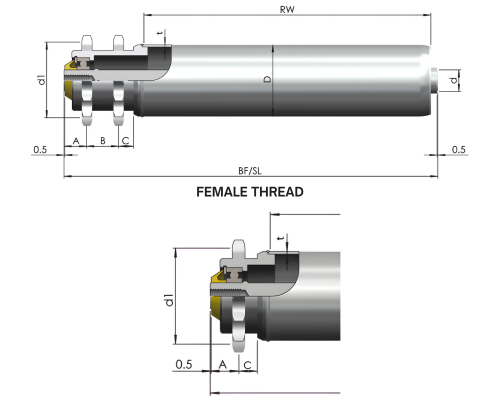

Features
Welded Single or Double sprocket options available
Bears medium and heavy loads
Precision bearings permanently housed in pressed sheet metal cap
| Tube Dia x Thk | Shaft Dia | Sprocket | Steel Z/P | SS |
|---|---|---|---|---|
| 38.1 x 1.2 | 12 | 3/8” 15T | ○ | ○ |
| 50.0 x 1.5 | 12 / 15 | 1/2” 14T | ○ | ○ |
| 50.8 x 1.5 | 15 | 1/2” 14T | ○ | ○ |
| 60.3 x 2.0 | 15 | 1/2” 14T | ○ | ○ |
| 60.3 x 3.0 | 17 | 1/2” 14T | ○ | ○ |
| 60.3 x 3.0 | 17 | 5/8” 13T | ○ | ○ |
| 76.2 x 3.0 | 20 | 5/8” 15T | ○ | ○ |
| 88.9 x 3.0 | 20 / 25 | 5/8” 15T | ○ | ○ |
| 88.9 x 3.0 | 20 / 25 | 5/8” 18T | ○ | ○ |
