Curve Conveyor Rollers– Smooth, Efficient, and Reliable Material Flow

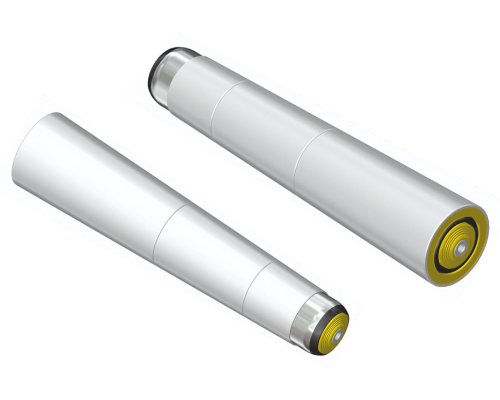

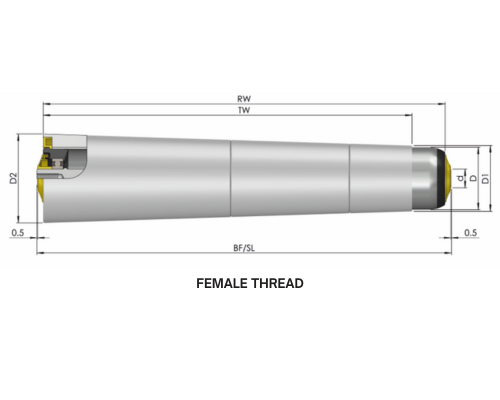

GN010TS Series – Tapered Gravity Conveyor Roller
The GN010TS Series includes high-quality tapered gravity conveyor rollers designed for smooth movement in curved conveyor systems. These curve conveyor rollers ensure proper product alignment and efficient flow without the need for power.
Designed by a leading curve conveyor rollers manufacturer for smooth curved movement
Tapered gravity conveyor roller ensures proper product alignment
Ideal for gravity-based curved conveyor systems
Available in standard diameter: 50 mm
Provides smooth and controlled directional flow
Reduces product misalignment in curved sections
Suitable for light to medium-duty applications
Easy to install and maintain
Low maintenance and long service life
Used in packaging, logistics, and warehouse systems
Improves conveyor efficiency
Reliable performance in continuous operations
Key Points :
Ideal for gravity-based systems
Maintains product alignment
Smooth directional movement
Reliable performance
Features :
Noise Free
Modular designed Polypropylene taper sleeve
Designed for Light weight application
Optional Length
Conicity: 1.8° (Inclusive: 3.6°)
| Tube Dia x Thk | Shaft Dia | Steel Z/P | SS |
|---|---|---|---|
| 50.0 x 1.5 | 12 / 15 / 11Hex | ○ | ○ |
| Tube Dia x Thk | Shaft Dia | Taper Sleeve Length |
|---|---|---|
| 50 x 1.5 | 12 / 15 / 11Hex | 295 |
| 50 x 1.5 | 12 / 15 / 11Hex | 345 |
| 50 x 1.5 | 12 / 15 / 11Hex | 395 |
| 50 x 1.5 | 12 / 15 / 11Hex | 445 |
| 50 x 1.5 | 12 / 15 / 11Hex | 495 |
| 50 x 1.5 | 12 / 15 / 11Hex | 545 |
| 50 x 1.5 | 12 / 15 / 11Hex | 595 |
| 50 x 1.5 | 12 / 15 / 11Hex | 645 |
| 50 x 1.5 | 12 / 15 / 11Hex | 695 |
| 50 x 1.5 | 12 / 15 / 11Hex | 745 |
| 50 x 1.5 | 12 / 15 / 11Hex | 795 |
| 50 x 1.5 | 12 / 15 / 11Hex | 845 |
| 50 x 1.5 | 12 / 15 / 11Hex | 895 |

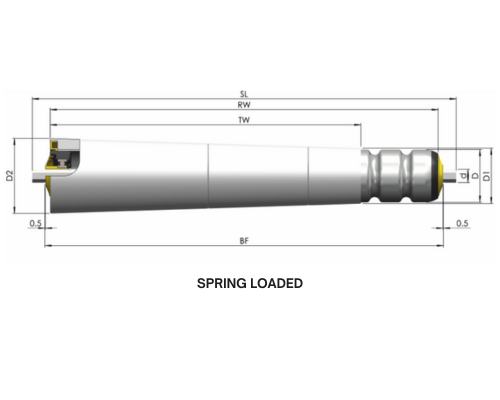

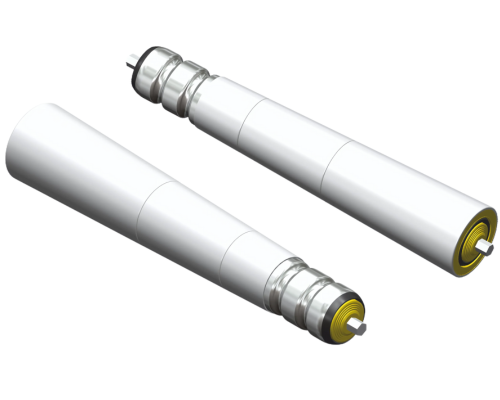

ON210TS Series – Tapered O-Belt Drive Roller
The ON210TS Series features advanced tapered O-belt drive rollers designed for powered curved conveyor systems. These curve conveyor rollers provide controlled movement and efficient power transmission for smooth operation.
Manufactured by a trusted curve conveyor rollers manufacturer
Tapered O-Belt drive roller designed for powered curved systems
Ensures smooth and controlled movement
Available in standard diameter: 50 mm
Provides efficient power transmission
Suitable for light to medium-duty applications
Maintains alignment in curved conveyor sections
Low noise and smooth operation
Easy installation and maintenance
Ideal for automated conveyor systems
Long-lasting and durable design
Improves system efficiency
Key Points :
Belt-driven system
Smooth and controlled movement
Suitable for light to medium-duty use
Low noise operation
Features :
Low noise
Groove radius R5 mm
'O' blet Drive
AIROLL make Endless 'O' Belts available on demand
Grooves position customized
Bears light duty loads
| Tube Dia x Thk | Shaft Dia | Steel Z/P | SS |
|---|---|---|---|
| 50.0 x 1.5 | 12 / 15 / 11Hex | ○ | ○ |
| Tube Dia x Thk | Shaft Dia | Taper Sleeve Length |
|---|---|---|
| 50 x 1.5 | 12 / 15 / 11Hex | 295 |
| 50 x 1.5 | 12 / 15 / 11Hex | 345 |
| 50 x 1.5 | 12 / 15 / 11Hex | 395 |
| 50 x 1.5 | 12 / 15 / 11Hex | 445 |
| 50 x 1.5 | 12 / 15 / 11Hex | 495 |
| 50 x 1.5 | 12 / 15 / 11Hex | 545 |
| 50 x 1.5 | 12 / 15 / 11Hex | 595 |
| 50 x 1.5 | 12 / 15 / 11Hex | 645 |
| 50 x 1.5 | 12 / 15 / 11Hex | 695 |
| 50 x 1.5 | 12 / 15 / 11Hex | 745 |
| 50 x 1.5 | 12 / 15 / 11Hex | 795 |
| 50 x 1.5 | 12 / 15 / 11Hex | 845 |
| 50 x 1.5 | 12 / 15 / 11Hex | 895 |

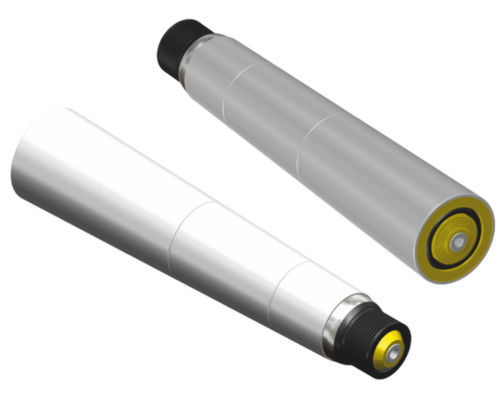

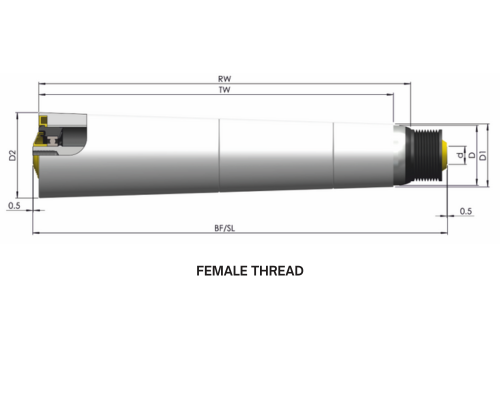

VP010TS Series – Tapered Poly-Vee Drive Head Roller
The VP010TS Series includes high-performance tapered Poly-Vee drive head rollers designed for high-speed conveyor systems. These curve conveyor rollers offer excellent grip and efficient power transfer in curved sections.
Developed by an experienced curve conveyor rollers manufacturer
Tapered Poly-Vee drive head roller for high-speed applications
Provides strong grip and efficient movement
Available in diameter: 50 mm
Suitable for automated conveyor systems
Ensures smooth and accurate product flow
Maintains alignment in curved sections
Low maintenance and high durability
Ideal for production lines and logistics systems
Reduces slippage and improves performance
Reliable for continuous operations
Best for precision conveyor applications
Key Points :
High-speed performance
Strong grip and efficiency
Ideal for automation systems
Smooth operation
Features :
Low noise
Groove radius R5 mm
'O' blet Drive
AIROLL make Endless 'O' Belts available on demand
Grooves position customized
Bears light duty loads
| Tube Dia x Thk | Shaft Dia | Steel Z/P | SS |
|---|---|---|---|
| 50.0 x 1.5 | 12 / 15 / 11Hex | ○ | ○ |
| Tube Dia x Thk | Shaft Dia | Taper Sleeve Length |
|---|---|---|
| 50 x 1.5 | 12 / 15 / 11Hex | 295 |
| 50 x 1.5 | 12 / 15 / 11Hex | 345 |
| 50 x 1.5 | 12 / 15 / 11Hex | 395 |
| 50 x 1.5 | 12 / 15 / 11Hex | 445 |
| 50 x 1.5 | 12 / 15 / 11Hex | 495 |
| 50 x 1.5 | 12 / 15 / 11Hex | 545 |
| 50 x 1.5 | 12 / 15 / 11Hex | 595 |
| 50 x 1.5 | 12 / 15 / 11Hex | 645 |
| 50 x 1.5 | 12 / 15 / 11Hex | 695 |
| 50 x 1.5 | 12 / 15 / 11Hex | 745 |
| 50 x 1.5 | 12 / 15 / 11Hex | 795 |
| 50 x 1.5 | 12 / 15 / 11Hex | 845 |
| 50 x 1.5 | 12 / 15 / 11Hex | 895 |

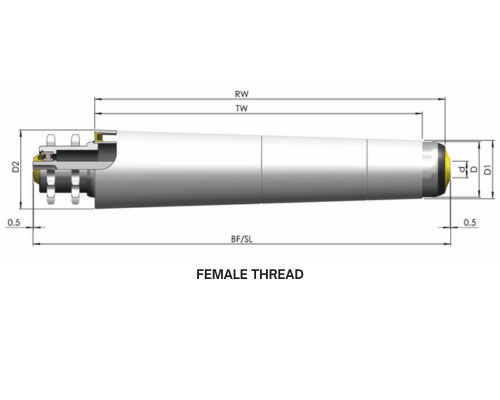

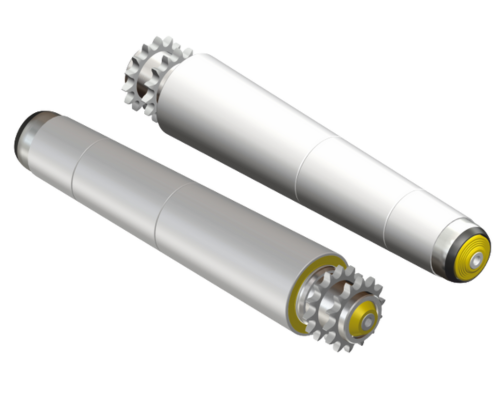

CS210TS Series – Tapered Welded Steel Sprocket Head Roller
The CS210TS Series offers heavy-duty tapered welded steel sprocket head rollers designed for high load capacity applications. These curve conveyor rollers ensure strong power transmission and durability in demanding environments.
Heavy-duty solution from a professional curve conveyor rollers manufacturer
Tapered welded steel sprocket head roller designed for high load capacity
Ensures strong and efficient power transmission
Available in diameter: 50 mm
Suitable for heavy-duty curved conveyor systems
Built for demanding industrial environments
Provides smooth and controlled movement
High strength and long service life
Resistant to wear and tear
Ideal for automated and high-load applications
Low maintenance with high performance
Supports continuous industrial operations
Key Points :
Heavy-duty construction
High load capacity
Strong power transmission
Long-lasting performance
Features :
elded Steel Sprockets
Double sprocket option available
Smooth and quite running
Conicity: 1.8° (Inclusive: 3.6°)
| Tube Dia x Thk | Shaft Dia | Sprocket | Steel Z/P | SS |
|---|---|---|---|---|
| 50.0 x 1.5 | 12 / 15 | 1/2” 14T | ○ | ○ |
| Tube Dia x Thk | Shaft Dia | Taper Sleeve Length |
|---|---|---|
| 50 x 1.5 | 12 / 15 / 11Hex | 295 |
| 50 x 1.5 | 12 / 15 / 11Hex | 345 |
| 50 x 1.5 | 12 / 15 / 11Hex | 395 |
| 50 x 1.5 | 12 / 15 / 11Hex | 445 |
| 50 x 1.5 | 12 / 15 / 11Hex | 495 |
| 50 x 1.5 | 12 / 15 / 11Hex | 545 |
| 50 x 1.5 | 12 / 15 / 11Hex | 595 |
| 50 x 1.5 | 12 / 15 / 11Hex | 645 |
| 50 x 1.5 | 12 / 15 / 11Hex | 695 |
| 50 x 1.5 | 12 / 15 / 11Hex | 745 |
| 50 x 1.5 | 12 / 15 / 11Hex | 795 |
| 50 x 1.5 | 12 / 15 / 11Hex | 845 |
| 50 x 1.5 | 12 / 15 / 11Hex | 895 |
Frequently Asked Questions :
What are curve conveyor rollers?
Curve conveyor rollers are rollers designed for movement in curved conveyor systems.
What is a tapered conveyor roller?
A tapered conveyor roller helps maintain alignment in curved conveyor systems.
What size is available?
Standard size available is 50 mm.
What is a tapered welded steel sprocket head roller?
It is a heavy-duty roller used for strong power transmission in curved systems.
