Conveyor Accessories
Features
Smooth & Free running
Made up of strong sheet metal
Free Fabricated Ball Bearing
Temperature: -20° C to 80° C
For light & medium duty Application

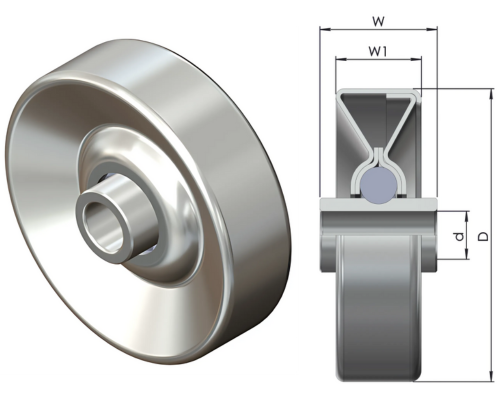

| Part No | Load | D | d | W | W1 |
|---|---|---|---|---|---|
| SW50SZ-6 | 25 Kgs | 50 | 6.35 | 20 | 15 |
| SW50SZ-8 | 25 Kgs | 50 | 8.2 | 20 | 15 |
Features
Smooth & Quite running
Made up of Strong Polypropelene
Wheel & Steel Balls
For light duty Application
Temperature: 10° C to 50° C

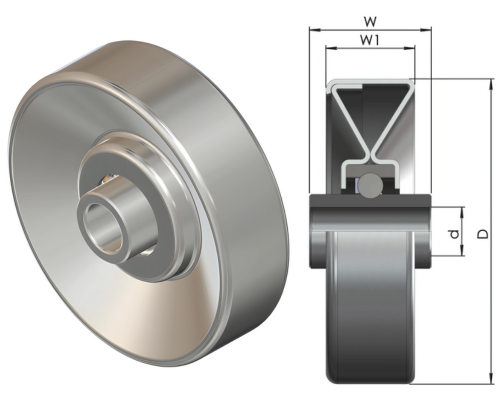

| Part No | Load | D | d | W | W1 |
|---|---|---|---|---|---|
| SW50PP-6 | 5 Kgs | 50 | 8 | 24 | 18 |
Features
Smooth & Noise free running
Made up of strong sheet metal body
Free Deep-Groove Ball Bearing
For medium duty Application
Temperature: -20° C to 80° C

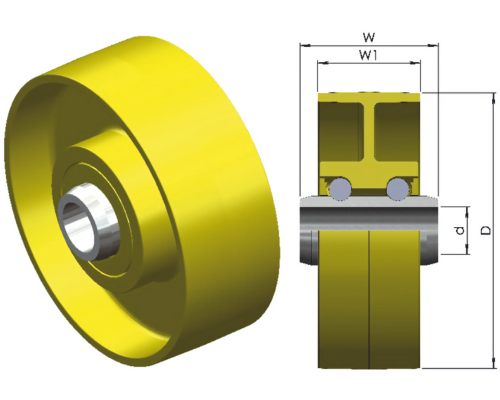

| Part No | Load | D | d | W | W1 |
|---|---|---|---|---|---|
| SW50PZ-6 | 50 Kgs | 50 | 8 | 20 | 15 |
